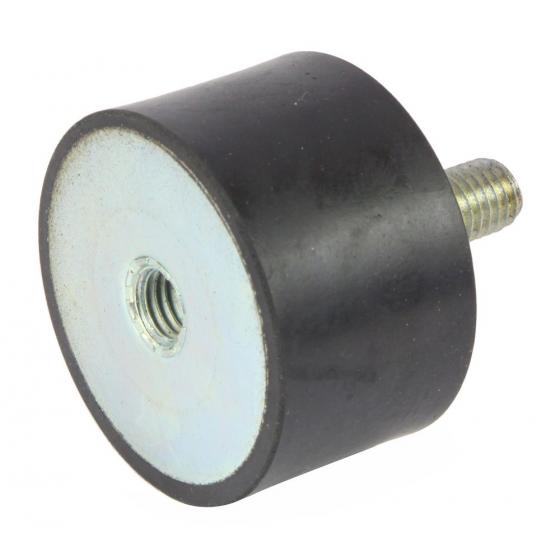

Male Female Bobbin

Male Female Bobbin Mounts, referred to as Type B Bobbin or Type 2 Bobbins. They are a low cost solution to reducing vibration & shock, and are used in applications where a bolt fixing is required. They can be used in either Shear of Compression or a combination of both, and can be produced with different thread variations. Many additional sizes are also offered, and the Bobbins can also be produced in Stainless Steel and Oil Resistant & High Temperature rubber compounds

Applications include - General Purpose mounts, where a Male / Female connection is required. Suitable for a wide range of applications & industries which may include Diesel Engines, Generator Sets, Instrumentation, Industrial Machines & Equipment. Weight range from 1kg to 2000Kg per mount.

For custom sizes, other rubber types (Neoprene, Nitrile, EPDM) or Stainless Steel Bobbin Mounts please Contact Us

available sizes

Item Diameter (D) Height (H) V I (mm) Max Load (Kg) Deflection (mm) Unit Price Qty
0806MF10-60
 08 06 M3 10 na na £1.29
1008MF10-60
 10 08 M4 10 4.4 0.6 £1.39
1010MF06-60
 10 10 M3 06 4.0 0.8 £1.39
1010MF10-60
 10 10 M4 10 4.0 0.8 £1.39
1515MF10-60
 15 15 M5 10 11.0 1.3 £1.59
1515MF10-45
 15 15 M4 10 6.0 1.3 £1.59
1515MF13-60
 15 15 M4 13 11.0 1.3 £1.59
2010MF12-60
 20 10 M6 12 17.5 1.2 £1.79
2015MF15-60
 20 15 M6 15 17.5 1.2 £1.89
2015MF18-45
 20 15 M6 18 9.3 1.2 £1.89
2020MF18-45
 20 20 M6 18 7.2 1.6 £1.89
2020MF20-60
 20 20 M6 20 13.4 1.6 £1.89
2025MF18-45
 20 25 M6 18 7.2 1.6 £1.89
2025MF18-60
 20 25 M6 18 13.4 1.6 £1.89
2030MF20-60
 20 30 M6 20 9.9 2.6 £1.89
2515MF18-60
 25 15 M6 18 35.0 1.2 £1.99
2520MF18-60
 25 20 M8 18 30.0 1.6 £1.99
2520MF20-45
 25 20 M8 20 16.5 1.6 £2.19
2520MF20-60
 25 20 M8 20 30.0 1.6 £2.19
2525MF15-45
 25 25 M8 15 12.8 2.1 £2.29
2525MF18-60
 25 25 M6 18 24.0 2.1 £2.29
2530MF20-60
 25 30 M8 20 23.0 2.7 £2.49
3015MF20-45
 30 15 M8 20 23.0 1.1 £3.29
3015MF20-60
 30 15 M8 20 42.0 1.1 £3.29
3020MF20-60
 30 20 M8 20 39.0 1.6 £3.39
3020MF33-45
 30 20 M8 33 21.0 1.6 £3.39
3020MF45-45
 30 20 M8 45 21.0 1.6 £3.39
3025MF20-45
 30 25 M8 20 17.5 2.1 £3.49
3025MF20-60
 30 25 M8 20 30.0 2.1 £3.49
3030MF13-70
 30 30 M8 13 39.0 2.6 £3.59
3030MF20-60
 30 30 M8 20 29.0 2.6 £3.59
3040MF20-45
 30 40 M8 20 14.5 3.6 £3.69
3040MF25-60
 30 40 M8 25 28.0 3.6 £3.69
4020MF23-45
 40 20 M8 23 42.0 1.6 £3.99
4020MF23-60
 40 20 M8 23 79.0 1.6 £3.99
4025MF20-45
 40 25 M8 20 39.0 2.1 £4.29
4025MF25-60
 40 25 M8 25 73.0 2.1 £4.29
4028MF25-60
 40 28 M8 25 73.0 2.1 £4.39
4030MF23-45
 40 30 M8 23 34.0 2.6 £4.49
4030MF23-60
 40 30 M8 23 64.0 2.6 £4.49
4035MF25-60
 40 35 M10 25 57.0 3.1 £4.69
4040MF23-60
 40 40 M8 23 55.0 3.6 £5.19
4040MF25-N45
 40 40 M10 25 30.0 3.6 £5.19
5020MF28-60
 50 20 M10 28 164.0 1.5 £6.19
5020MF28-70
 50 20 M10 28 226.0 1.5 £6.19
5025MF20-60
 50 25 M10 20 151.0 2.0 £6.29
5030MF25-60
 50 30 M10 25 70.0 2.5 £6.39
5035MF25-45
 50 35 M10 25 61.0 3.0 £6.59
5035MF25-60
 50 35 M10 25 113.0 3.0 £6.59
5040MF25-60
 50 40 M10 25 94.0 3.5 £6.79
5045MF28-60
 50 45 M10 28 84.0 4.0 £6.89
5050MF28-60
 50 50 M10 28 78.0 4.5 £6.99
6035MF25-60
 60 35 M10 25 203.0 3.1 £7.39
7030MF15-60
 70 30 M10 15 326.0 2.4 £8.29
7050MF37-45
 70 50 M12 37 117.0 4.4 £8.29
7050MF37-60
 70 50 M12 37 217.0 4.4 £8.29
7050MF37-70
 70 50 M12 37 300.00 4.4 £8.29
7540MF37-45
 75 40 M12 37 154.0 3.4 £8.59
7550MF37-45
 75 50 M12 37 147.0 4.4 £8.69
7550MF37-60
 75 50 M12 37 276.0 4.4 £8.69
7555MF37-70
 75 55 M12 37 333.0 4.9 £8.89
10055MF44-70
 100 55 M16 44 710.0 4.7 £25.99
10060MF44-60
 100 60 M16 44 480.0 5.2 £26.99
