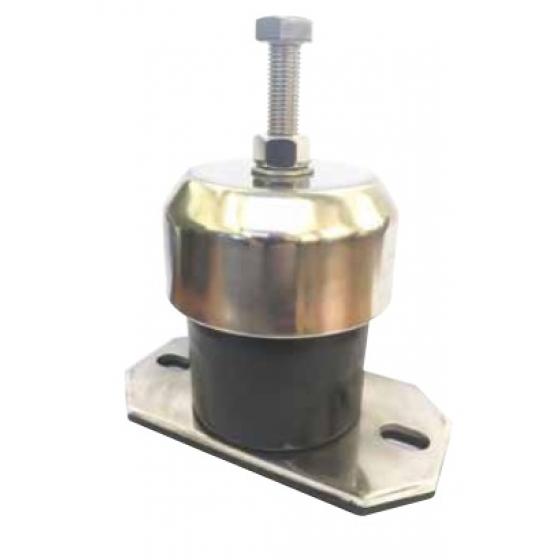

Enclosed Spring Mounts

Enclosed Spring Mountings are a High Performance Prooduct, capable of achieving up to 99% Vibration Reduction. Enclosed Spring Mounts consist of steel coil springs mounted within steel cup. the steel cup controls the lateral movement of the mounted equipment and also contains snubbing rubber to control start-up and shut-down movements. Ideal for Industrial Machinery. the mountings are supplied with a top fixing bolt to allow for levelling after installation, and can be supplied with an oil resistant anti-slip pad under the base.

Applications Include:

Static Generating Sets
HVAC (Fans, Pumps, AHU, Chillers)
Slow Speed Equipment
School, Hospital and Residential Installations

available sizes

Item	A	B	C	D	E	F	G	Max Load(kg)	Deflection(mm)	Unit Price	Qty
ESS20/15	76	63	54-60	48	38	6.5	M8	15	20	£29.99
ESS20/20	76	63	54-60	48	38	6.5	M8	20	20	£29.99
ESS20/40	76	63	54-60	48	38	6.5	M8	40	25	£29.99
ESS20/70	76	63	54-60	48	38	6.5	M8	70	20	£29.99
ESM25/100	110	89	85-90	78	70	9	M10	100	25	£49.99
ESM25/160	110	89	85-90	78	70	9	M10	160	25	£49.99
ESM25/250	110	89	85-90	78	70	9	M10	250	25	£49.99
ESL25/400	180	127	130-150	111	95	13.5	M16	400	25	£69.99
ESL25/800	180	127	130-150	111	95	13.5	M16	800	25	£69.99
ESL25/1400	180	127	130-150	111	95	13.5	M16	1400	25	£79.99
